D50DNP2MFALAC Features:
- Choose from 2 powerful processors for each 2-socket module:
- 5th/4th Gen Intel Xeon Scalable processors
- Socket-E LGA4677
- Up to 350W
- Up to 128 cores per server (5th Gen) / 120 cores per server (4th Gen)
- Intel® Xeon® CPU Max Series
- Integrated High Bandwidth Memory (HBM) delivers up to 1TB bandwidth
- Up to 112 cores per module
- 5th/4th Gen Intel Xeon Scalable processors
- Up to 3 Intel® UPI 2.0 links per socket at 20 GT/s
- Max Memory: (8) + (8) DDR5 DIMMs slots @ 5600(5th Gen) / 4800(4th Gen) MT/s
- Networking:
- (1) 10GBase-T LAN + (1) 1000Base-T dedicated IPMI ports
- Up to 400Gbps network card support
- Storage:
- Fixed storage: Max 2 NVMe/SATA M.2 slots per module
- Hot-swap storage: 2 2.5" U.2 NVMe SSDs
- PCIe slots: 4 low profile (LP) PCIe Gen 5 and 4 full-height full-length (FHFL) double-width cards
- Validated support for 4 Intel Data Center GPU Max 1100 (formerly Ponte Vecchio
- Chassis configuration:
- 2U Chassis, 865 x 442 x 86.8 mm
- 2U one module, standard air-cooled
- Power Supply: 2700W PSU, 80+ Titanium
Security Support:
- Built-in Security Enhancements:
Intel Crypto Acceleration, Intel Software Guard Extensions (Intel® SGX), Intel Total Memory Encryption (Intel® TME), and Intel® Platform Firmware Resilience (Intel® PFR), and Converged Intel® Boot Guard and Trusted Execution Technology (Intel® TXT) - TPM 2.0 (Trusted platform module)
Built-in accelerators for data-intensive workloads
- Intel® Deep Learning Boost (Intel® DL Boost) with Intel® Advanced Matrix Extensions (Intel® AMX) to accelerate AI training and inferencing.
- Intel® Dynamic Load Balancer (Intel® DLB)
- Next Generation Intel® QuickAssist Technology (Intel® QAT)
- Intel® Data Streaming Accelerator (Intel® DSA)
- Intel® In-memory Analytics Accelerator (Intel® IAA)
Enterprise-Class Server Management:
- System Software (OpenBMC& BIOS)
- Redfish& IPMI 2.0 support
- (Optional) Advanced System Management Key (software license key)
- Intel® Data Center Manager (Intel® DCM)
Real-time health, inventory and firmware version management of many servers at once - Intel® Server Utilities
Intel® Server Debug and Provisioning Tool (Intel® SDP Tool): In-band and out-of-band debug and provisioning utilities - Aspeed AST2600 and Remote Management Processor
Intel® D50DNP Server Board (D50DNP1SB):

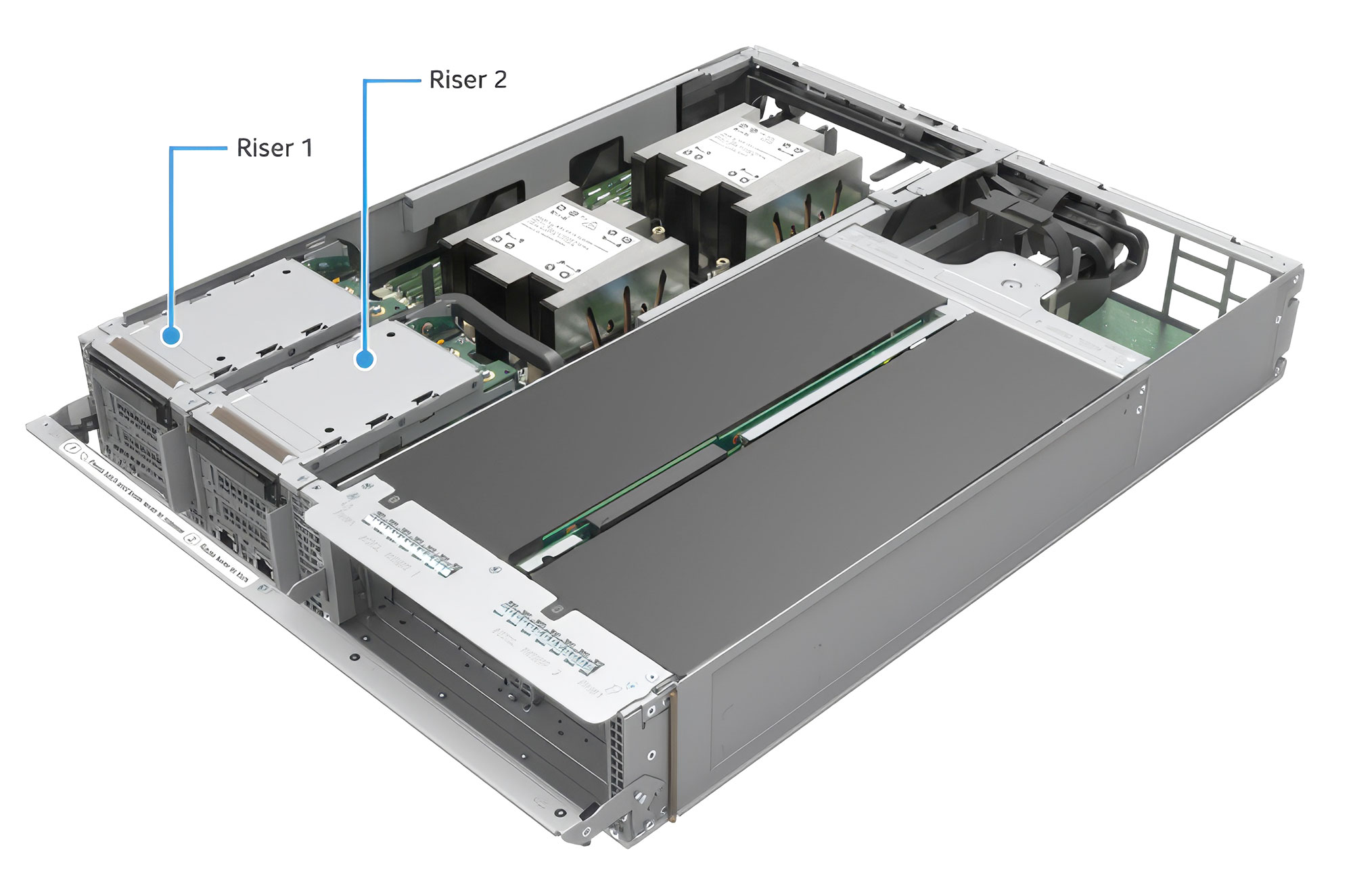

Intel D50DNP2MFALAC System Overview:

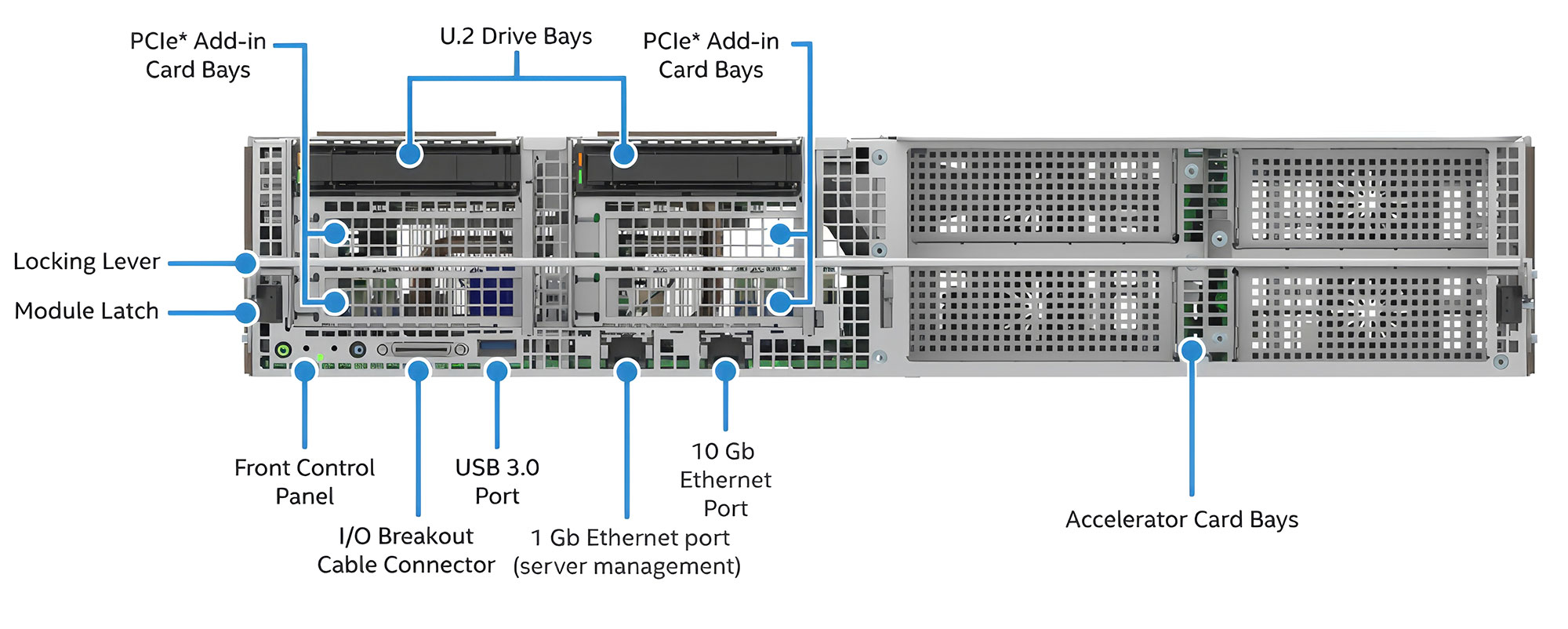

2U D50DNP2MFALAC PCIe Accelerator Module Front Panel:

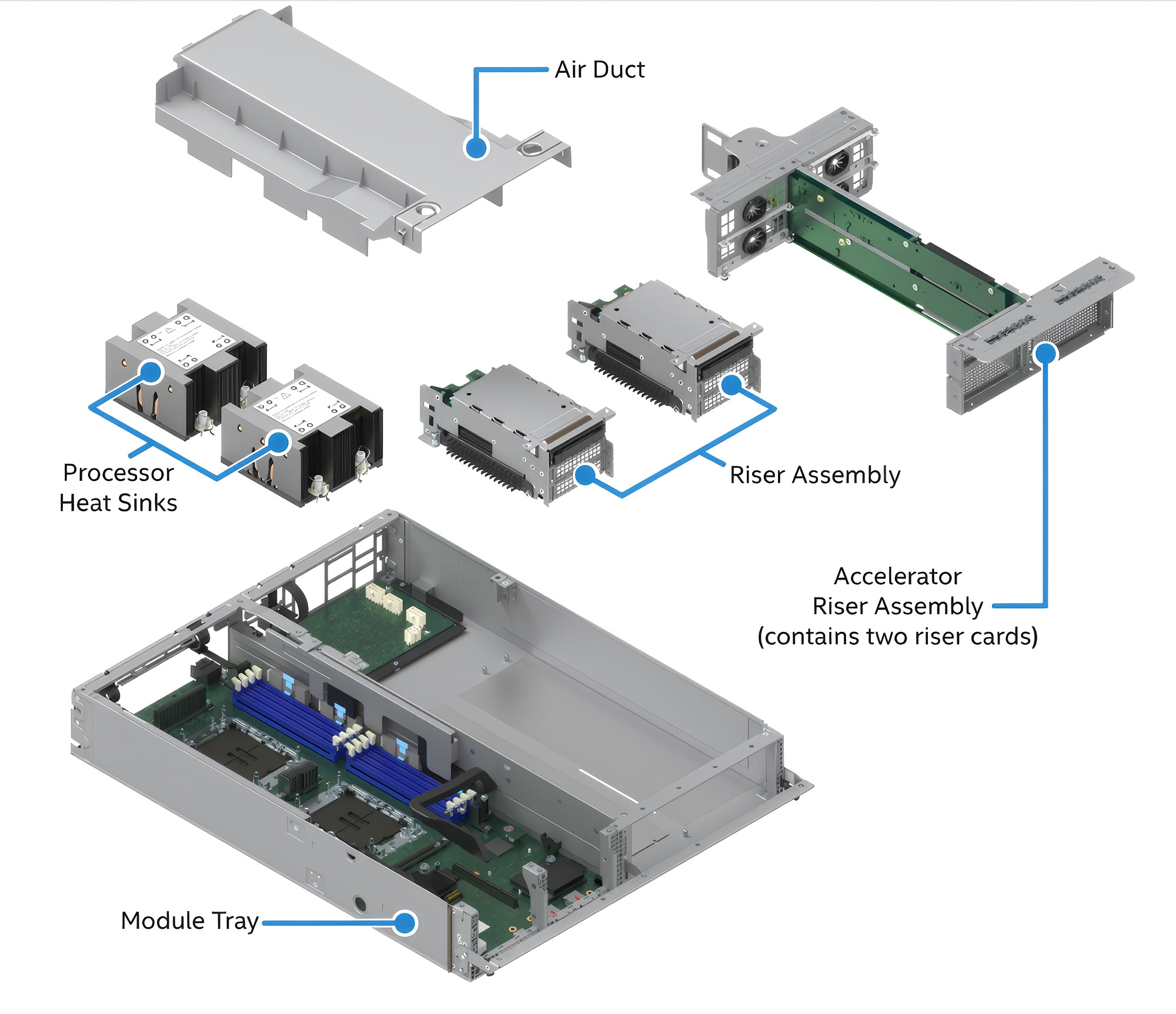

2U PCIe Accelerator Module D50DNP2MFALAC Components:
Intel D50DNP Air-Cooled System Rear View:
Intel® D50DNP2MFALAC Chassis configuration:
Intel® Server Chassis FC2000 Family (Optimus Beach v2) for D50DNP2MFALAC Intel® Server PCIe Accelerator Module
(1 2U D50DNP2MFALAC module in FC2000)
