M2810Z5
High-Density, Flexible 2U Server Platform for Datacenter Efficiency
M2810Z5X4E1BC

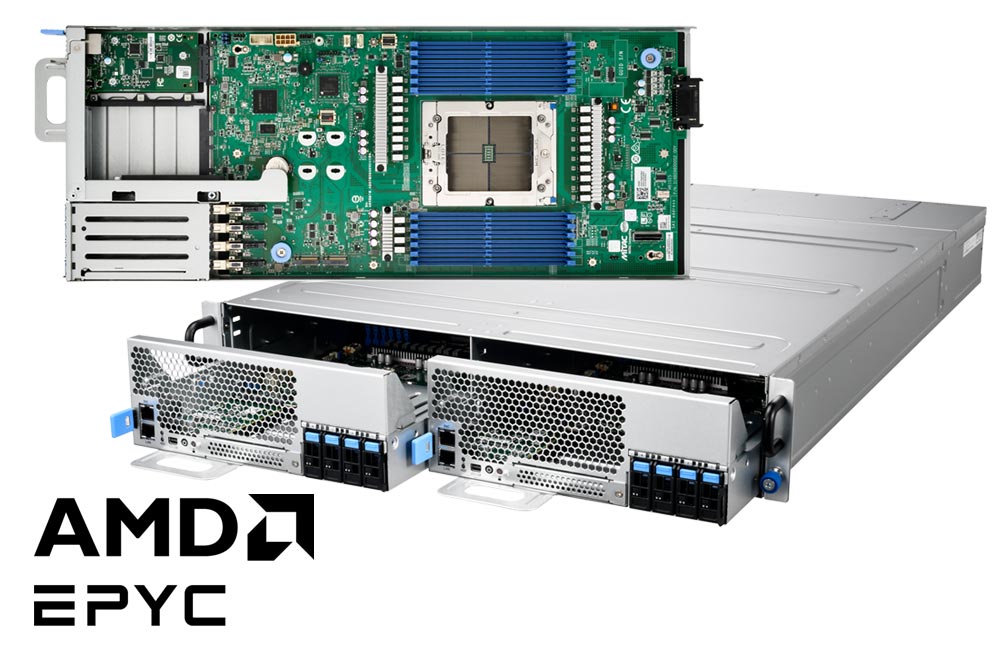

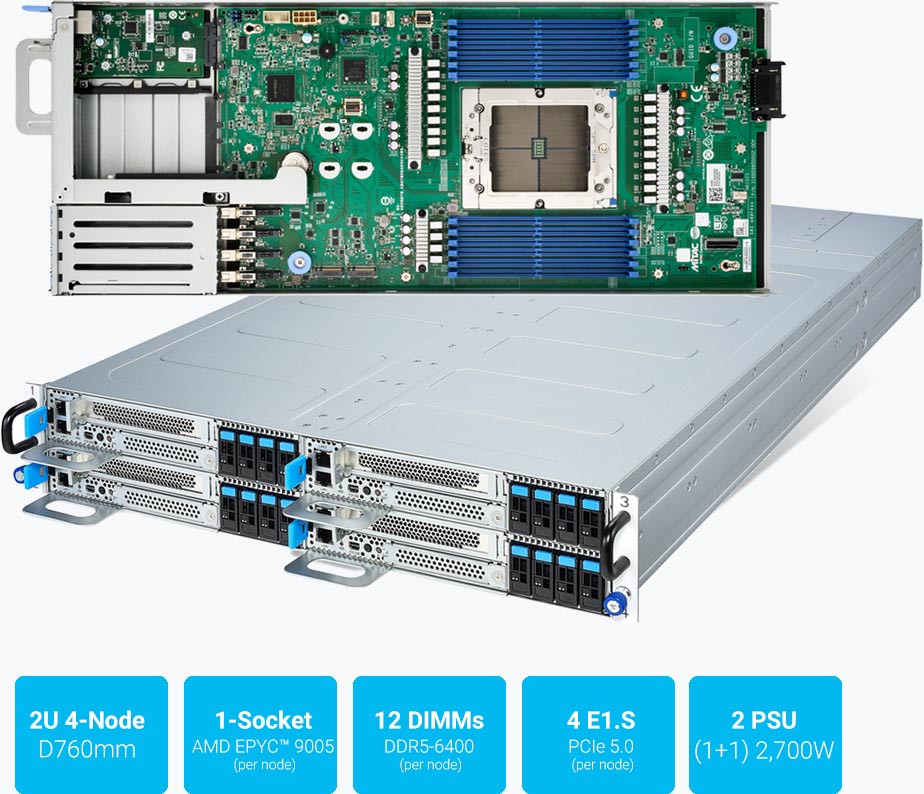

Multi-node 2U AMD Turin Cloud Server
The MiTAC M2810Z5 is a versatile 2U 4-node single-socket server platform built to deliver scalable performance and deployment flexibility for modern data centers. Powered by the AMD EPYC™ 9005/9004 Series processors with support for up to 500W cTDP, this platform is designed to meet the high-throughput demands of front-end web servers, cloud-scale infrastructure, and compute-driven workloads such as CPU-based HPC applications. With up to 16 NVMe E1.S drives and high-speed DDR5 memory support, the M2810Z5 is optimized for performance, density, and serviceability.
Key Features:
Flexible 2U 4-Node Architecture
Supports up to four independent single-socket server nodes in a compact 2U chassis, maximizing compute density.
Powerful AMD EPYC™ 9005/9004 Series CPUs
Supports up to 500W configurable TDP, offering exceptional performance for data-intensive applications.
High-Speed DDR5 Memory
Each node supports 12 DDR5 DIMM slots (up to 3,072GB), enabling high-bandwidth memory access ideal for virtualized or HPC workloads.
Advanced Storage Flexibility
Each node features:
- (4) hot-swap NVMe E1.S bays for high-speed, tool-less storage expansion.
- (2) PCIe 4.0 x4 NVMe M.2 slots (22110/2280) for fast boot or caching.
Expansion and Networking
- (1) PCIe 5.0 x16 FH/HL slot per node.
- (1) PCIe 5.0 x16 OCP v3.0 slot for optional high-speed LAN mezzanine up to 400Gb/s.
- Dedicated management via IPMI and a 1GbE LAN port per node.
Efficient Power and Cooling
- Shared hot-swap fan design (4x 8056) and front-service node access.
- Redundant 80+ Titanium CRPS PSU: 2,700W for 4-node
Applications:
Cloud Service Providers (CSPs)
Ideal for high-volume, space-optimized server deployments in large-scale datacenters.
Web-Scale Front-End Servers
Supports multiple web nodes in a dense, high-performance form factor.
CPU-Based HPC Clusters
High core count and memory bandwidth for compute-focused workloads.
Edge-Optimized Data Aggregation
Efficient for high-density environments with front-access maintenance.
Why Choose MiTAC M2810Z5?
Density and Efficiency:
Up to 4 nodes / 2 nodes in 2U with shared cooling and power maximizes rack utilization and operational efficiency.
Future-Ready Performance:
Supports the latest AMD EPYC™ CPUs, DDR5 memory, PCIe 5.0, and E1.S NVMe to ensure long-term value.
Serviceability First:
Front-access nodes and tool-less drive bays simplify deployment and maintenance.
Proven Datacenter Expertise:
Backed by MiTAC's long-standing innovation in enterprise and cloud server platforms.
The MiTAC M2810Z5 is the ideal choice for datacenters seeking:
- High-density compute with flexible 2-node or 4-node deployment in a compact 2U chassis.
- Powerful performance with support for AMD EPYC™ 9005/9004 processors and DDR5 memory.
- High-speed storage with hot-swap NVMe E1.S bays and PCIe 5.0 expansion.
- Optimized cooling and power efficiency for demanding workloads.
- Front-access design for easy maintenance and streamlined operations.
With its advanced architecture and scalable performance, the MiTAC M2810Z5 empowers organizations to efficiently support cloud infrastructure, front-end services, virtualization, and CPU-based HPC applications.
