S5573

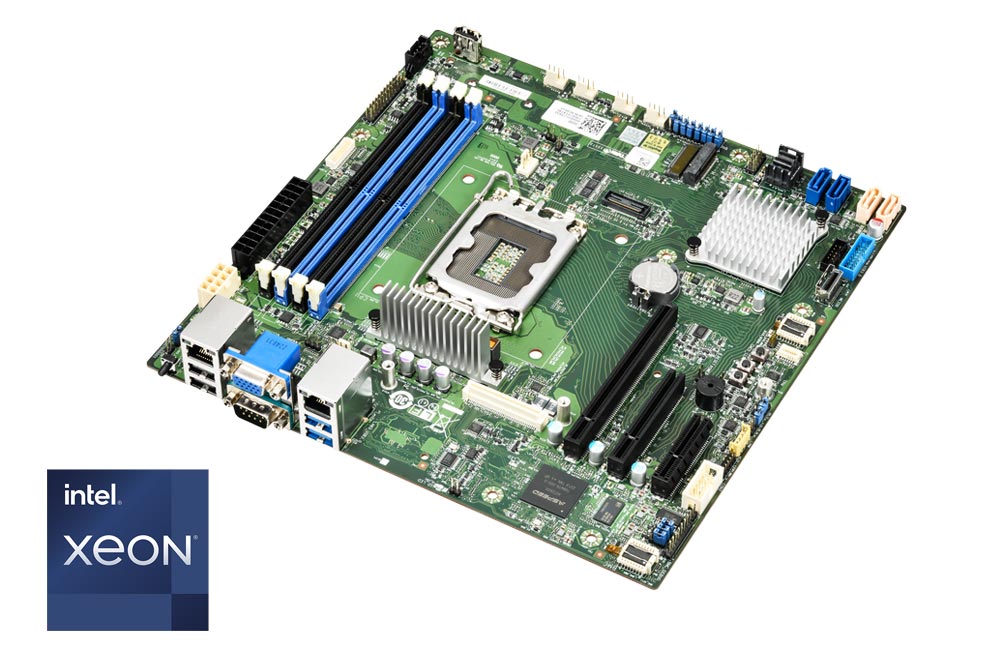

Single-Socket Intel Raptor Lake-E Server Board

  • Supports Intel® Xeon® 6300/Xeon® E-2400 processors
  • Micro-ATX 9.6" × 9.6" form factor for compact system designs
  • 4 DDR5 ECC UDIMM slots supporting up to DDR5-4800
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x8, and 1 PCIe 3.0 x4 expansion slots
  • 1 MCIO x4 connector
  • 8 SATA 6Gb/s ports for flexible storage configurations
  • 2 NVMe M.2 slots (22110 / 2280)
  • 1 × 1GbE LAN port
  • 2 × 25GbE LAN ports (on mezzanine)
  • ASPEED AST2600 BMC with IPMI and Redfish support for remote management
SKUProcessor BrandCPUsCPU TypeDIMM SlotsPCIe Slots
S5573GM3NR-2V-HE*Intel1Intel Xeon 6300/E-2400 Series Processors43
S5573GMNR-HE*Intel1Intel Xeon 6300/E-2400 Series Processors43
* PCIe Gen 5 backplane support for NVMe U.2.

Specifications

Motherboard
Board Dimension (W x L)
µATX 9.6" x 9.6" (243.8 x 243.8mm)
Processor
Q'ty / Socket Type
(1) Intel Socket LGA1700
Supported CPU Series
Intel Xeon 6300/E-2400 Series Processors Intel Pentium G7400/G7400T Processors
Thermal Design Power Wattage
Max up to 95W (TDP)
Memory
Supported DIMM Qty
(4) DIMM slots
DIMM Type / Speed
UDIMM DDR5 4400 MT/s (1DPC) UDIMM DDR5 3600 MT/s (2DPC)
Capacity
Up to 128GB UDIMM DDR5-4800 memory
Memory channel
(2) Channels per CPU
Memory voltage
1.1V
Chipset
Peripheral Controller
C266 PCH
Storage
Internal (# / Interface)
(2) NVMe M.2 2280/22110 slots (PCIe Gen 3 x4)
Connector (SATA)
(1) SFF-8643 (MiniSAS HD) + (4) 7-pin SATA
Connector (PCIe)
(1) MCIO 4x
RAID Level (SATA)
RAID 0/1/10/5 (Intel RSTe)
PCIe Expansion Slots
PCIe
(1) PCIe Gen 5 x16 slot (1) PCIe Gen 4 x8 (w/ x4 link) slot (1) PCIe Gen 3 x4 (w/ x2 link) slot
Internal I/O Ports & Headers
Power
(1) 24-pin + (1) 8-pin conn. (ATX)
Front Panel
(1) 24-pin header (SSI)
Fan
(6) 4-pin headers (1x CPU; 5x system)
USB
(1) Type A conn. (USB 2.0) (1) 10-pin header (USB 2.0) (1) 20-pin header (USB 3.2 Gen 1)
COM
(1) 10-pin header
TPM
(1) 11-pin header
SGPIO
(1) 10-pin headers
SMBus
(1) 7-pin headers
IPMB
(1) 4-pin header
PSMI
(1) 5-pin header
Rear Panel
Buttons
(1) UID
Rear I/O Ports
USB
(2) USB 3.2 Gen 1 + (2) USB 2.0 ports
VGA
(1) D-sub 15-pin port
RJ-45 (Data)
(1) GbE port
COM
(1) DB-9 COM port
RJ-45 (IPMI)
(1) GbE port dedicated for IPMI
SFP28
(2) 25GbE ports (on M5573-B502-2V mezz.)
Networking
Controller
(1) Broadcom BCM57502 + (1) Intel i210-AT
PHY
Realtek RTL8211FD-CG
TPM (Optional)
TPM Support
Please refer to our TPM supported list.
Interface
SPI
Graphic
Connector type
D-Sub 15-pin
Resolution
Up to 1920x1200
Chipset
Aspeed AST2600
System Monitoring
Chipset
Aspeed AST2600
Temperature
Monitors temperature for CPU & memory & system environment
Voltage
Monitors voltage for CPU, memory, chipset & power supply
LED
Over temperature warning indicator / Fan & PSU fail LED indicator
BIOS
Brand / ROM size
AMI / 32MB
Feature
Hardware Monitor/ FAN speed control automatic/ Boot from USB device/ PXE via LAN/Storage / Console Redirection/ SMBIOS 3.7/ PnP/ Wake on LAN/ ACPI 6.5/ ACPI sleeping states S0, S5
Server Management
Chipset
Aspeed AST2600
AST2600 iKVM Feature
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
Operating Environment
Operating Temp.
10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.
-40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity
85% (Operating humidity) 90% (Non-operating Humidity)
Regulation
FCC/IC
Class B
CE
Class B
RCM
Class B
VCCI
Class B
OS Compatibility
OS supported list
Please refer to our compatibility support lists
RoHS
RoHS 2.0
Yes
Package Contains
Motherboard
(1) S5573GM3NR-2V-HE Motherboard
Manual
(1) Quick Installation Guide
Others
(1) I/O Shield (2) SATA 7-pin Cables
