TS70B7136

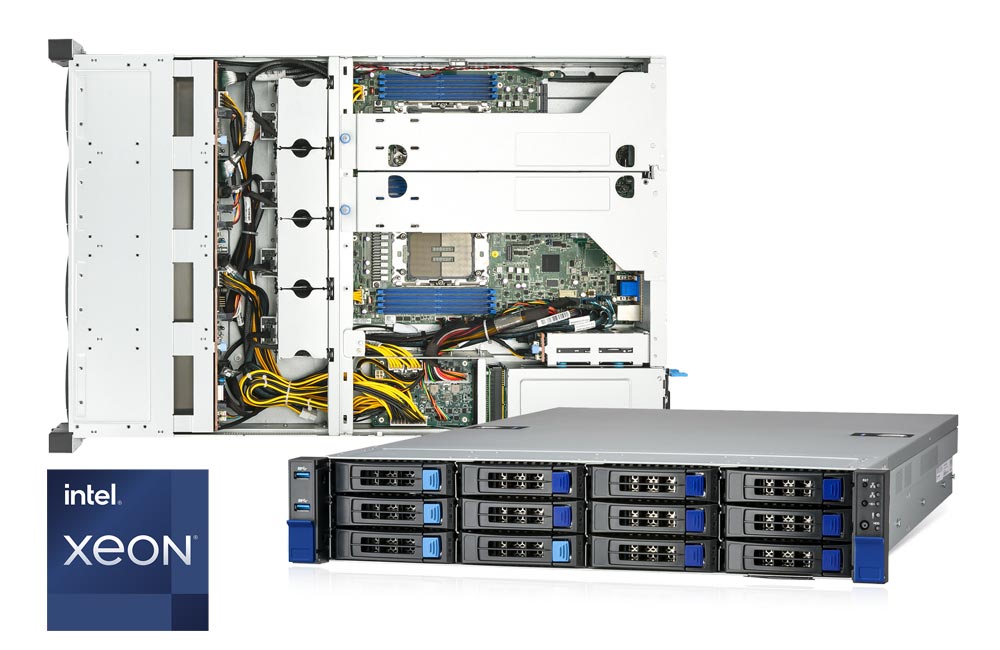

2U2S Warm Storage Server, 10 SATA + 4 NVMe U.2 / SATA
- 2S Intel Emerald Rapids / Sapphire Rapids CPU
- 16 DIMM slots with DDR5-4800 memory support
- 12 3.5" SATA with opt. 4 NVMe U.2 hot-swap, tool-less drive bays
- 2 2.5" SATA hot-swap, tool-less drive bays @ rear
- PCIe 5.0 x16 OCP v3.0 LAN mezzanine slot
- 2 NVMe M.2 2280 slots
- 1 dedicate 1000Base-T IPMI port
- (1+1) CRPS
| SKU | Processor Brand | CPUs | CPU Type | Cooling Type | Form Factor | Storage Bays | DIMM Slots | PCIe Slots |
|---|---|---|---|---|---|---|---|---|
| B7136T70V10E4HR* | Intel | 2 | 5th/4th Gen Intel Xeon Scalable Processors | Air | 2U | 12 | 16 | 5 |
| B7136T70V10E4HR-2T* | Intel | 2 | 5th/4th Gen Intel Xeon Scalable Processors | Air | 2U | 12 | 16 | 5 |
| B7136T70V10E4HR-2T-HE* | Intel | 2 | 5th/4th Gen Intel Xeon Scalable Processors | Air | 2U | 12 | 16 | 5 |
| B7136T70V10E4HR-HE* | Intel | 2 | 5th/4th Gen Intel Xeon Scalable Processors | Air | 2U | 12 | 16 | 5 |
Specifications
System
- Form Factor
- 2U Rackmount
- Dimension (D x W x H)
- 27.56" x 17.26" x 3.42" (700 x 438.5 x 87mm)
- Chassis Model
- TS70
- Motherboard Name
- S7136GMRE
- Board Dimension (W x L)
- Prop. 12.16" x 14.18" (308.8 x 360.2mm)
- Gross Weight
- Net weight
Processor
- Q'ty / Socket Type
- (2) Intel Socket LGA4677
- Supported CPU Series
- 5th/4th Gen Intel Xeon Scalable Processors
- Thermal Design Power Wattage
- Max up to 350W (TDP)
Memory
- Supported DIMM Qty
- (8+8) DIMM slots
- DIMM Type / Speed
- RDIMM DDR5 5600 MT/s (5th Gen Xeon w/ 1DPC) RDIMM DDR5 4800 MT/s (4th Gen Xeon w/ 1DPC) RDIMM DDR5 4400 MT/s (2DPC)
- Capacity
- Up to 2TB RDIMM DDR5-5600 memory
- Memory channel
- (8) Channels per CPU
- Memory voltage
- 1.1V
Chipset
- Controller
- C741 PCH
Storage
- Internal (# / Interface)
- (2) NVMe M.2 2280 slots
- Front (# / Interface)
- (12) 3.5" hot-swap bays (SAS/SATA w/ 4 NVMe U.2; PCIe Gen 4)
- RAID Level (SATA)
- RAID 0/1/10/5 (Intel RSTe)
- Notes
- The SAS/SATA HDD backplane is connected to onboard SATA connection by default.
- Header (HW Key)
- (1) 4-pin header (for Intel VROC NVMe RAID)
- Rear (# / Interface)
- (2) 2.5" SAS/SATA hot-swap bays
PCIe Expansion Slots
- PCIe
- (2) PCIe Gen 5 x16 slots (FH/HL) (2) PCIe Gen 5 x8 slots (FH/HL) (1) PCIe Gen 5 x8 slot (FH/HL w/ x4 link)
- OCP
- (1) v3.0 mezz. slot (SFF)
Rear Panel
- Buttons
- (1) UID
Rear I/O Ports
- USB
- (2) USB 3.2 Gen 1 ports
- VGA
- (1) D-sub 15-pin port
- RJ-45 (Data)
- -
- COM
- (1) DB-9 COM port
- RJ-45 (IPMI)
- (1) GbE port dedicated for IPMI
Front Panel
- Buttons
- (1) PWR w/ LED / (1) UID / (1) RST
- LED
- (1) UID / (1) HDD / (2) LAN / (1) System Event
Networking
- Controller
- -
- PHY
- Realtek RTL8211FD-CG
Front I/O Ports
- USB
- (2) USB 3.2 Gen 1 ports
TPM (Optional)
- TPM Support
- Please refer to our TPM supported list.
- Interface
- SPI
Power Supply
- Type
- CRPS
- Input Range
- AC 100-127V/ 12A AC 200-240V/ 8.5A
- Frequency
- 50-60 Hz
- Output Watts
- 1,000 Watts (AC 100-127V); 1,300 Watts (AC 200-240V)
- Efficiency
- 80 plus Titanium
- Redundancy
- 1+1
Cooling
- Air
- (4) 8056 hot-swap fans w/ (N+1) redundancy
Graphic
- Connector type
- D-Sub 15-pin
- Resolution
- Up to 1920x1200
- Chipset
- Aspeed AST2600
System Monitoring
- Chipset
- Aspeed AST2600
- Temperature
- Monitors temperature for CPU & memory & system environment
- Voltage
- Monitors voltage for CPU, memory, chipset & power supply
- LED
- Over temperature warning indicator / Fan & PSU fail LED indicator
BIOS
- Brand / ROM size
- AMI / 64MB
- Feature
- Hardware Monitor/ FAN speed control automatic/ Boot from USB device/ PXE via LAN/Storage / Console Redirection/ SMBIOS 3.7/ PnP/ Wake on LAN/ ACPI 6.5/ ACPI sleeping states S0, S5
Server Management
- Chipset
- Aspeed AST2600
- AST2600 iKVM Feature
- 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
- AST2600 IPMI Feature
- IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
Operating Environment
- Operating Temp.
- 10° C ~ 35° C (50° F~ 95° F)
- Non-operating Temp.
- -40° C ~ 70° C (-40° F ~ 158° F)
- In/Non-operating Humidity
- 85% (Operating humidity) 90% (Non-operating Humidity)
Regulation
- FCC/IC
- Class A
- CE
- Class A
- RCM
- Class A
- CB/LVD
- Yes
- VCCI
- Class A
- BSMI
- Class A
OS Compatibility
- OS supported list
- Please refer to our compatibility support lists
RoHS
- RoHS 2.0
- Yes
Package Contains
- Barebone
- (1) B7136T70V10E4HR-HE Barebone
- Manual
- (1) Quick Installation Guide
- Others
- (1) M.2 Card Latch (2) CPU Heatsink (2) E1A Carriers (for XCC CPU) (2) E1B Carriers (for MCC CPU) (1) Sliding Rail Kit (2) Power Cord (C13) (2) Power Cord (CEE7)
