D50TNP

1U Half-Width Compute Module with High-flow Air Cooling

  • Up to 205W 2S 3rd Gen Intel® Xeon® Scalable processors
  • 8+8 DDR4 DIMMs @ 3200 MT/s
  • 2 x16 PCIe 4.0 low-profile (LP) slots
  • 2 M.2 SATA/NVMe SSDs 80 or 110 mm
  • 1 10GBase-T LAN and 1 1000Base-T dedicated IPMI ports
  • 2U 4 nodes, High-flow air cooling
  • 3 hot-swap CRPS 2100W (80+ Platinum) PSUs

D50TNP1MHCRAC Features:

  • Processor:
    • 2 3rd Gen Intel Xeon Scalable processors
    • Socket-P4 LGA4189
    • Up to 80 cores per server
    • Up to 205W TDP
    • Up to 3 Intel® Ultra Path Interconnects (Intel® UPI) at 11.2 GT/s
  • Memory:
    • (8) + (8) DDR4 DIMMs slots @ 3200 MT/s
    • Up to 2 TB DDR4 memory capacity for both processors (1 TB per processor)
  • PCIe: 2 x16 PCIe 4.0 low-profile (LP) slots support
  • Storage: 2 M.2 SATA/NVMe SSDs 80 or 110 mm
  • Networking: (1) 10GBase-T LAN + (1) 1000Base-T dedicated IPMI ports
  • Chassis configuration: 2U up to 4 modules, high-flow air cooling
  • Power Supply:3 2100W hot-swap CRPS PSUs (80+ Platinum)

Enterprise-Class Server Management:

  • System Software (BMC& BIOS)
    • Redfish& IPMI 2.0 support
  • Intel® Data Center Manager (Intel® DCM)
  • Intel® Server Debug and Provisioning Tool (Intel® SDP Tool)
  • Aspeed AST2500 and Remote Management Processor


Security Support:

  • Built-in Security Enhancements:
    Intel® Platform Firmware Resilience (Intel® PFR), Intel® Software Guard Extensions (Intel® SGX), Intel® CBnT– Converged Intel® Boot Guard and Trusted Execution Technology (Intel® TXT), and Intel® Total Memory Encryption (Intel® TME)
  • Trusted platform module TPM 2.0 (accessory option)

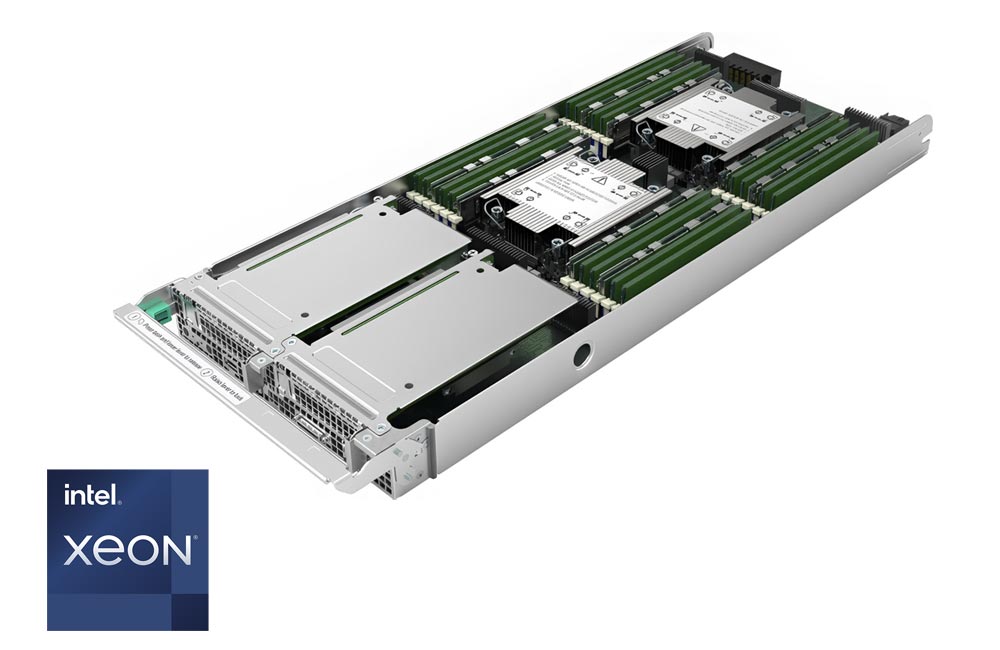

1U D50TNP1MHCRAC Compute Module Server System Overview:

1U D50TNP1MHCRAC Compute Module Front Panel:

1U D50TNP1MHCRAC Compute Module Components:

D50TNP1MHCRAC Dimensions:

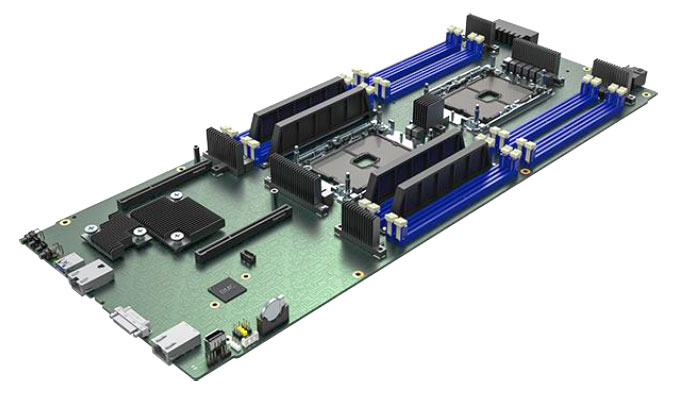

Intel® D50TNP Server Board (D50TNP1SBCR):

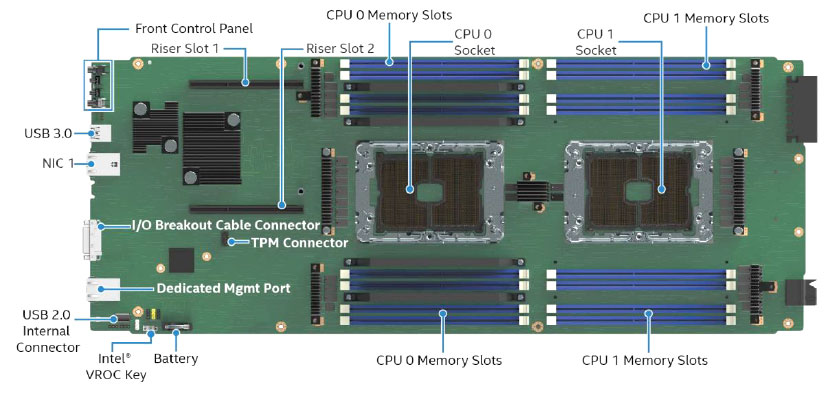

D50TNP1SBCR Feature:
