D50TNP2MFALAC Features:
- Processor:
- 2 3rd Gen Intel Xeon Scalable processors
- Socket-P4 LGA4189
- Up to 80 cores per server
- Up to 270W TDP
- Up to 3 Intel® Ultra Path Interconnects (Intel® UPI) at 11.2 GT/s
- Memory:
- (8) + (8) DDR4 DIMMs slots @ 3200 MT/s
- Up to 2 TB DDR4 memory capacity for both processors (1 TB per processor)
- Intel® Optane™ persistent memory 200 series support enables up to 3 TB of memory capacity per processor
- PCIe:
- 3 x16 PCIe 4.0 low-profile(LP) slots
- 1 x8 PCIe 4.0 low-profile slot
- 4 x14 full-height full-length(FHFL) double-width (DW) PCIe 4.0 slots
- Storage:
- 2 M.2 SATA/NVMe SSDs 80 or 110 mm
- 2 U.2 NVMe hot-swap SSDs
- Networking: (1) 10GBase-T LAN + (1) 1000Base-T dedicated IPMI ports
- Chassis configuration: 2U 1 module, high-flow air cooling
- Power Supply:3 hot-swap CRPS 1600W (80+ Titanium)
Enterprise-Class Server Management:
- System Software (BMC& BIOS)
- Redfish& IPMI 2.0 support
- Intel® Data Center Manager (Intel® DCM)
- Intel® Server Debug and Provisioning Tool (Intel® SDP Tool)
- Aspeed AST2500 and Remote Management Processor
Security Support:
- Built-in Security Enhancements:
Intel® Platform Firmware Resilience (Intel® PFR), Intel® Software Guard Extensions (Intel® SGX), Intel® CBnT– Converged Intel® Boot Guard and Trusted Execution Technology (Intel® TXT), and Intel® Total Memory Encryption (Intel® TME) - Trusted platform module TPM 2.0 (accessory option)
2U D50TNP2MFALAC Acceleration Module Server System Overview:

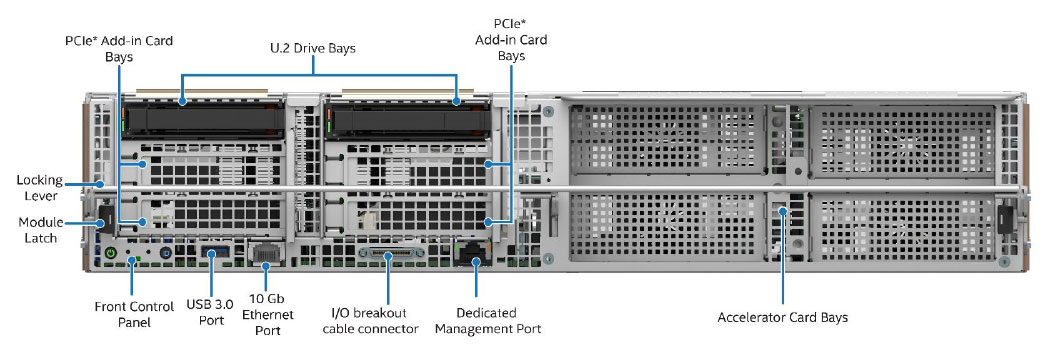

2U D50TNP2MFALAC Acceleration Module Front Panel:

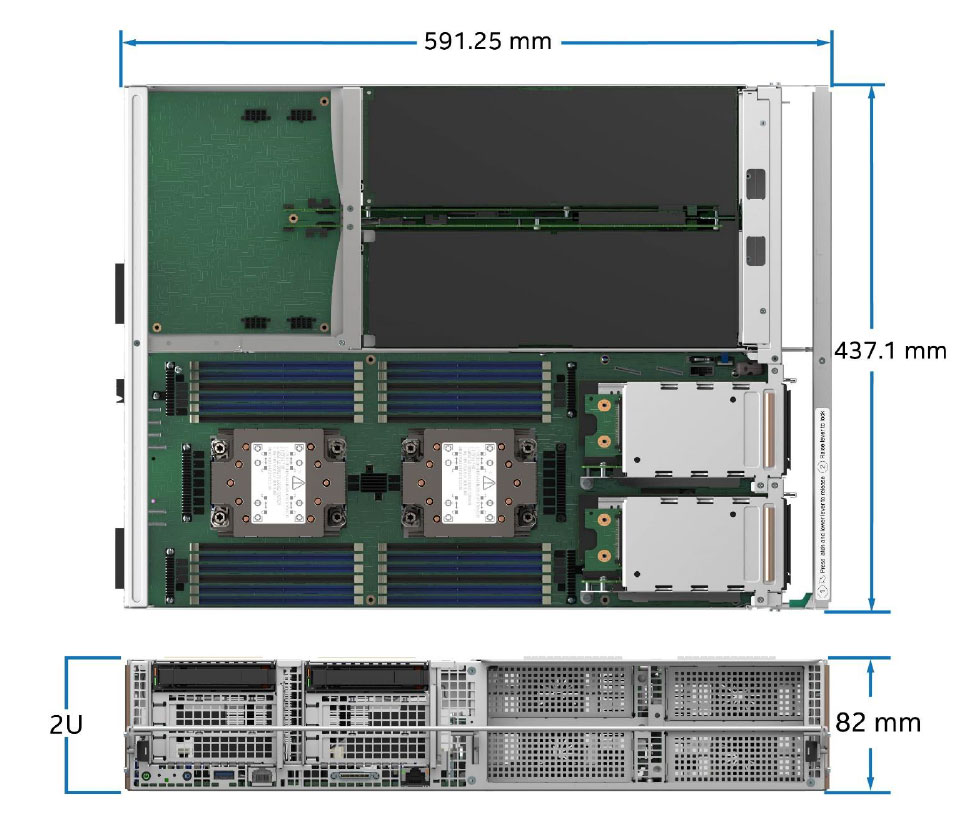

D50TNP2MFALAC Dimensions:
Intel® D50TNP Server Board (D50TNP1SB):
D50TNP1SBCR Feature:
